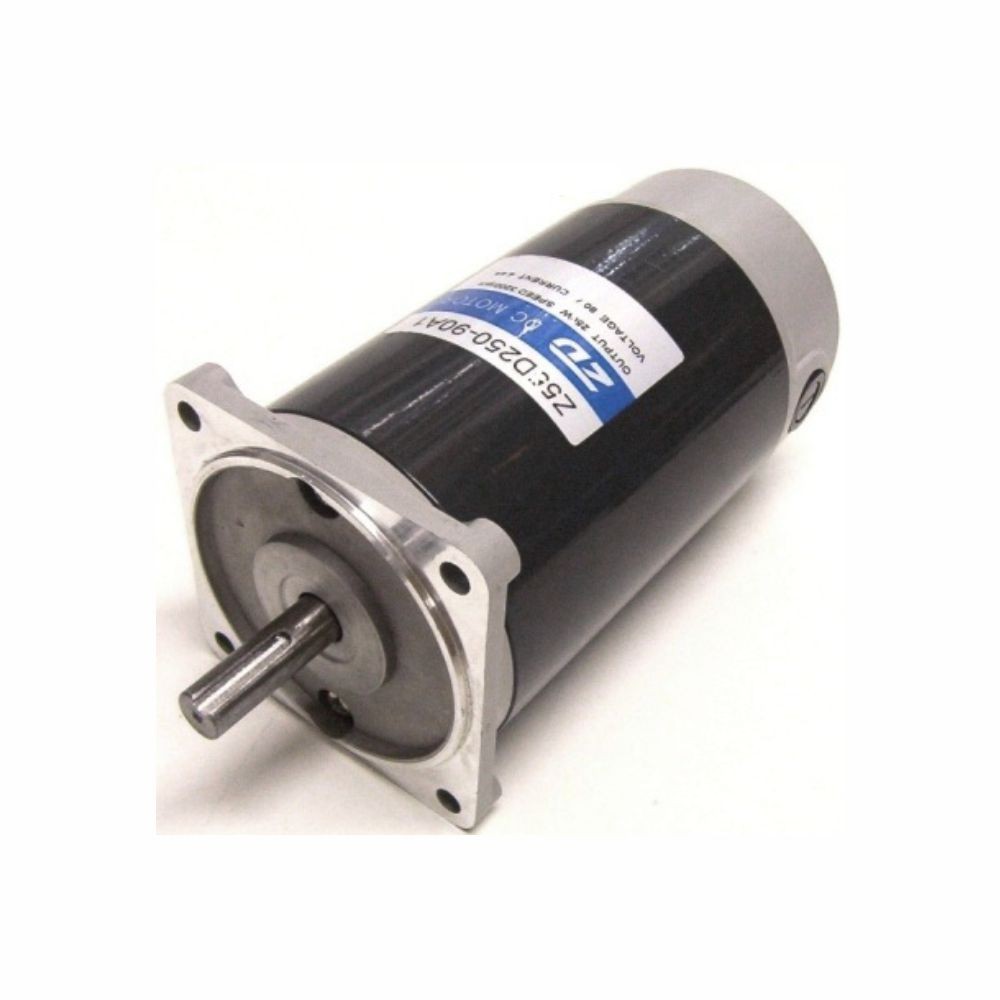

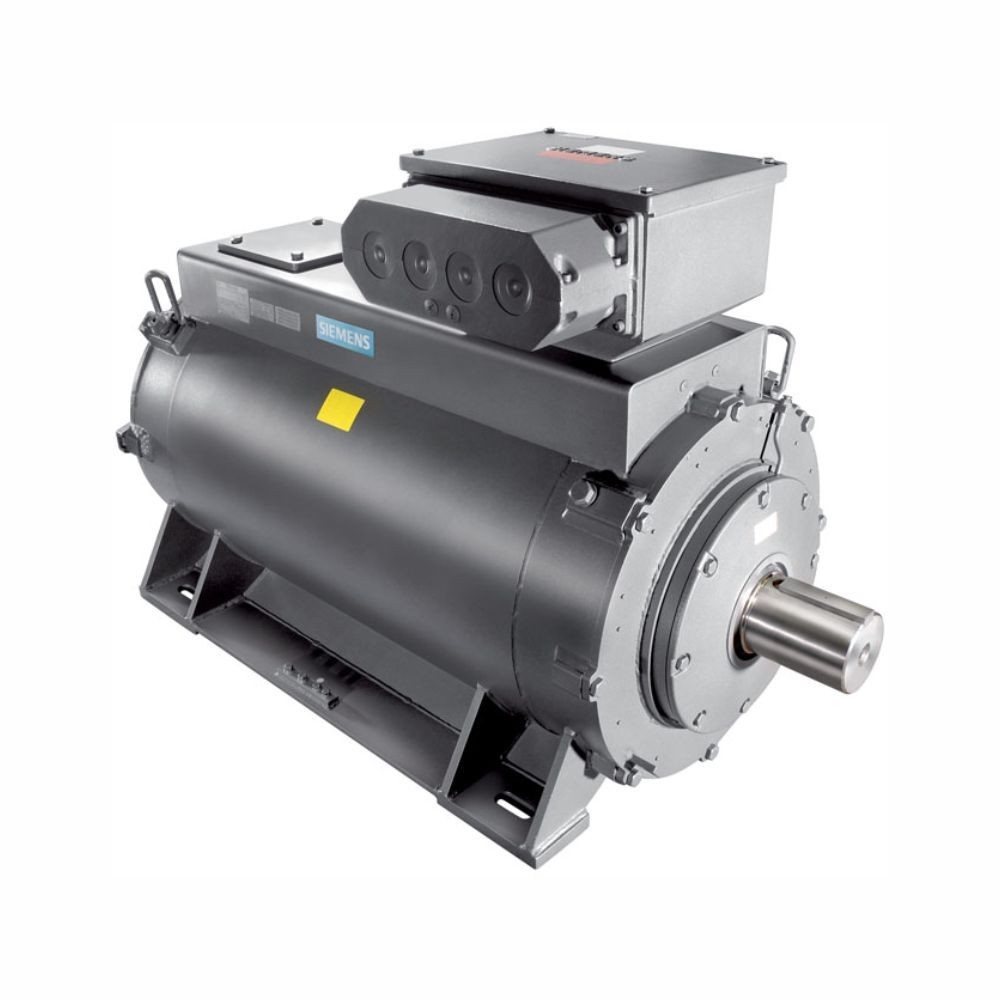

Direct current engines
The direct current engine is a reversible electric equipment which rotates, making the conversion of the electric energy absorbed from the generator. It consists of two main elements: stator and rotor. It is suitable for electric drives of small and medium powers, or for drives that do not require a variable magnetic field of excitation
Description:
The direct current engine is a reversible electric equipment which rotates, making the conversion of the electric energy absorbed from the generator. It consists of two main elements: stator and rotor. It is suitable for electric drives of small and medium powers, or for drives that do not require a variable magnetic field of excitation.
Types of direct current engines:
- Engine with independent excitation - where the statoric and rotoring windings are connected to two separate power sources
- Engine with parallel excitation - where the statoric and rotoring winding are connected in parallel to the same voltage source
- Engine with serial excitation - where the statoric and rotoric winding are connected in serie
- Engine with mixed excitation - where the statoric winding is divided into two windings, one connected in parallel and thye other one connected in serie
Specifications:
- Power: 0.7 - 860 kW
- Gauge: 80-450 mm
- Nominal torque: 9-13600 Nm
- Rated voltage: 100-520 V
- Dust and water protection: IP55, IP23
- Insulation class: H, F
- With two shafts
- Fitted with tachogenerator
Applications:
- Electrical and urban (trams, locomotives etc)
- Domestic applications of low power and high rotational speeds (vacuum cleaner, mixer, coffee grinders etc)
- Industrial applications (machines, pumps, fans etc)
- Applications where speed variation is needed
Strengths:
- High efficiency
- Minimal power consumption, high starting torque
- Low noise and vibration
- Reliability and easy maintenance
Ask for more details
