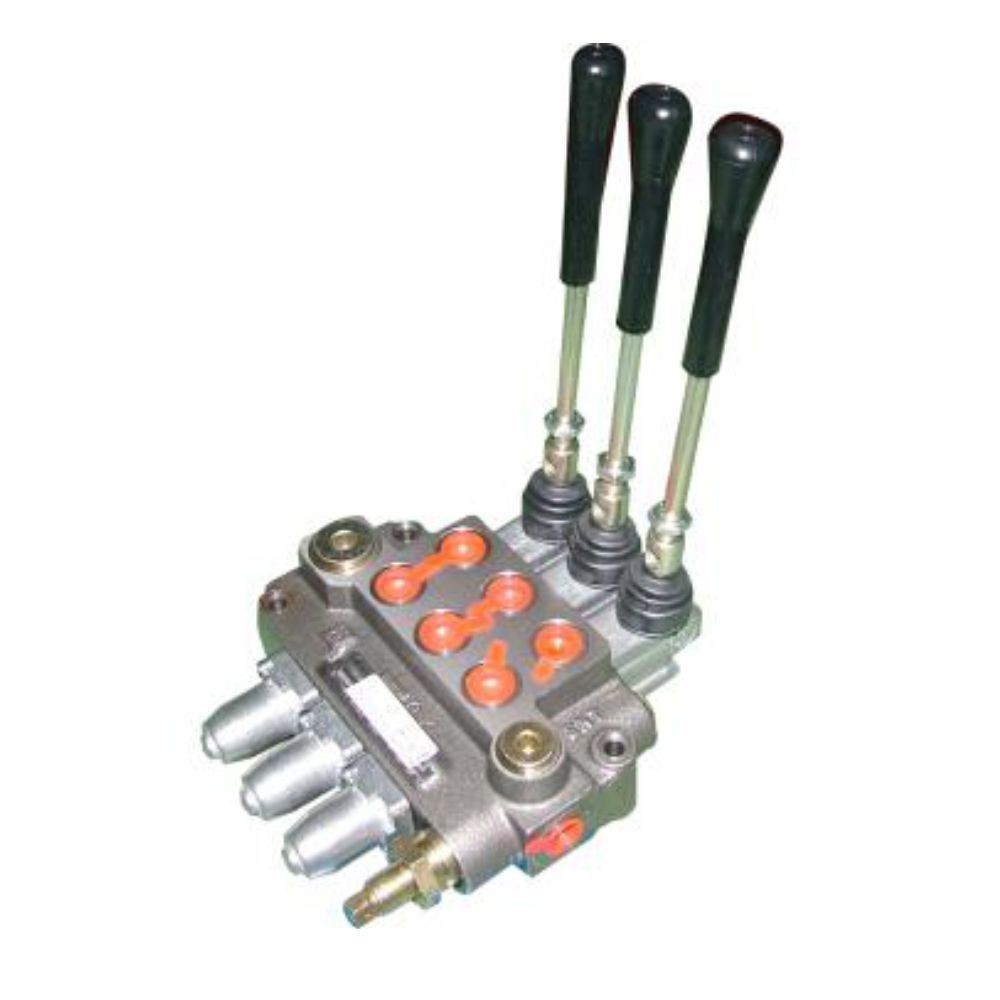

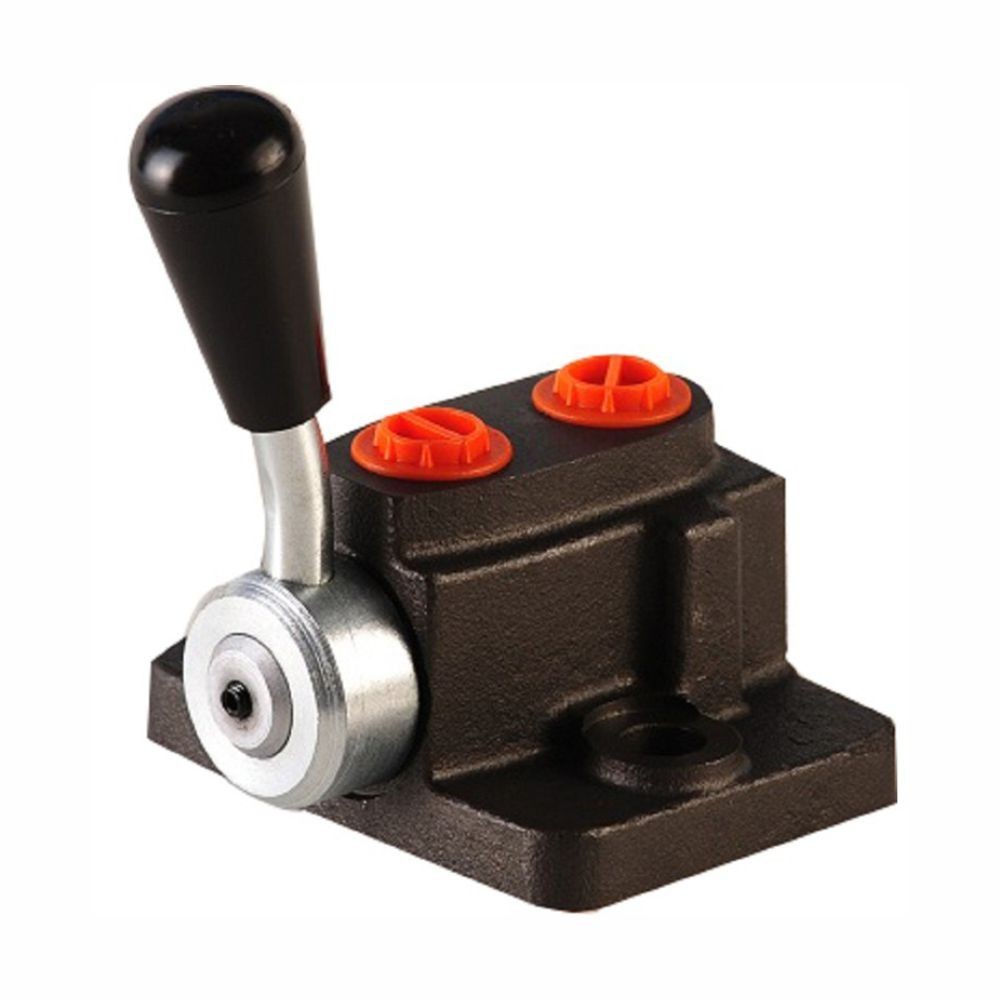

Hydraulic distributors
Hydraulic distributors are the most important devices used in directing the flow of oil in various directions, by manual, mechanical, hydraulic, pneumatic or electric operation of a drawer. Monobloc distributors are the perfect choice no matter if you are designing a new hydraulic installation or if you try to replace a faulty distributor.
Description:
Hydraulic distributors are the most important devices used in directing the flow of oil in various directions, by manual, mechanical, hydraulic, pneumatic or electric operation of a drawer. Monobloc distributors are the perfect choice no matter if you are designing a new hydraulic installation or if you try to replace a faulty distributor.
Types of hydraulic distributors:
- Monobloc 40 liters
- Monobloc 80 liters
- Monobloc 120 liters
Specifications:
- With adjustable pressure clack, drose, direction or drive clacks LS (Load Sensing)
- Multiple sizes DN5, DN6, DN10, DN16, DN20, DN25, DN32
- Nominal flow of 40, 80, 120 liters/minute and a maximum flow of 45 liters/minute
- May have from 1 to 7 drawers and a maximum pressure of 450 bar
- The drawers have negative coverage. The central position can be closed or opened, with three or four ways
- Manual, mechanical or electrical operation (12VDC, 24VDC, 110VAC, 220VAC)
- Have wide selection of inlets, ports and discharge work
- The body is made of cast iron
Applications:
- Cranes, loaders, excavators, forklifts, graders, trucks, agricultural tractors, construction equipment, machines for precast concrete, hydraulic presses and equipment drilling and repairing wells etc
Strengths:
- Economic products
- Can be used in open, closed, parallel, serial or tandem circuits
- Modular or monobloc, with easy to modify sections
- Can be mounted on plate
Ask for more details
