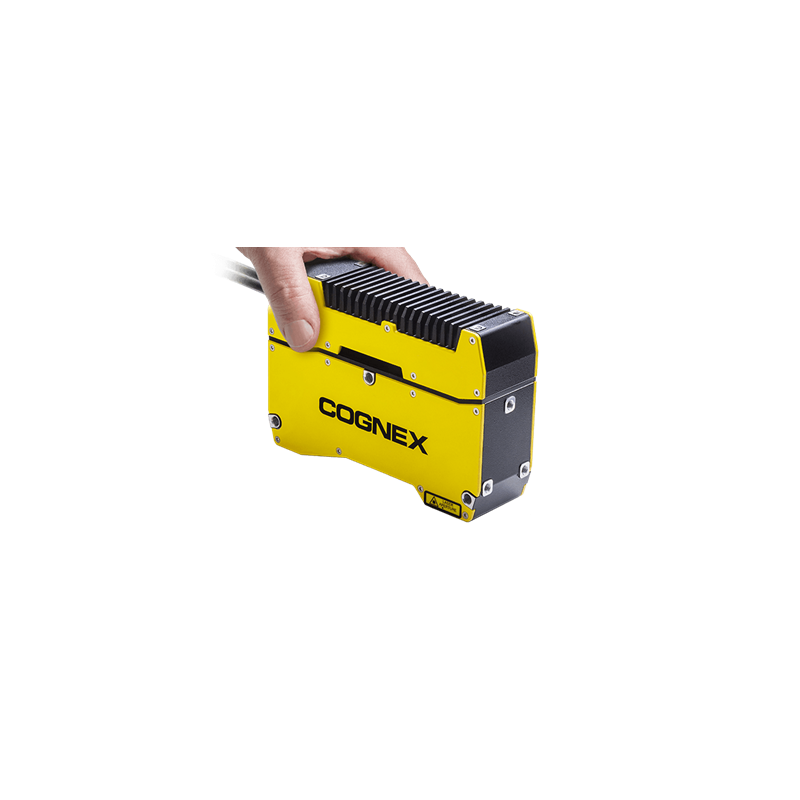

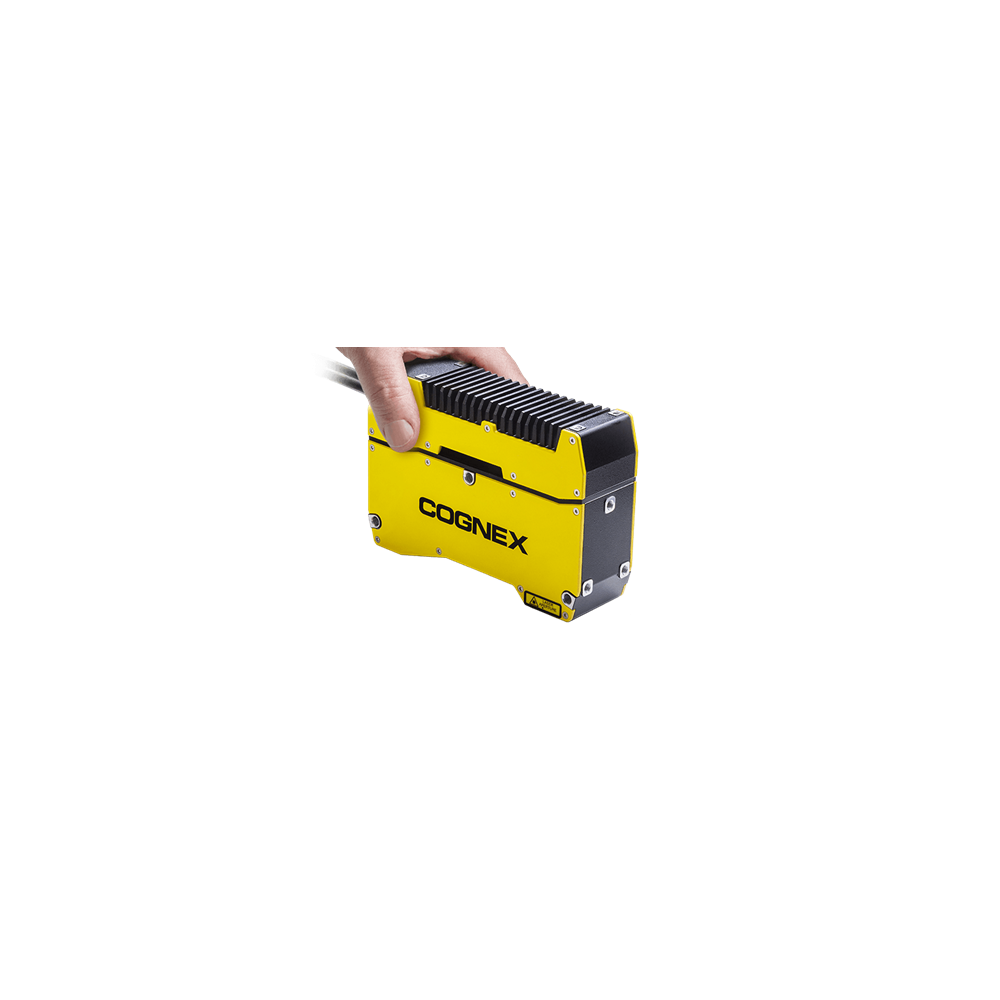

3D Machine Vision Systems
Whether performing a single profile measurement or scanning an entire surface in 3D, Cognex has the most powerful and robust 3D machine vision tools. Manufacturers in all industries trust Cognex technology to deliver high accuracy surface feature measurements that go beyond the capabilities of 2D machine vision technology.
Description:

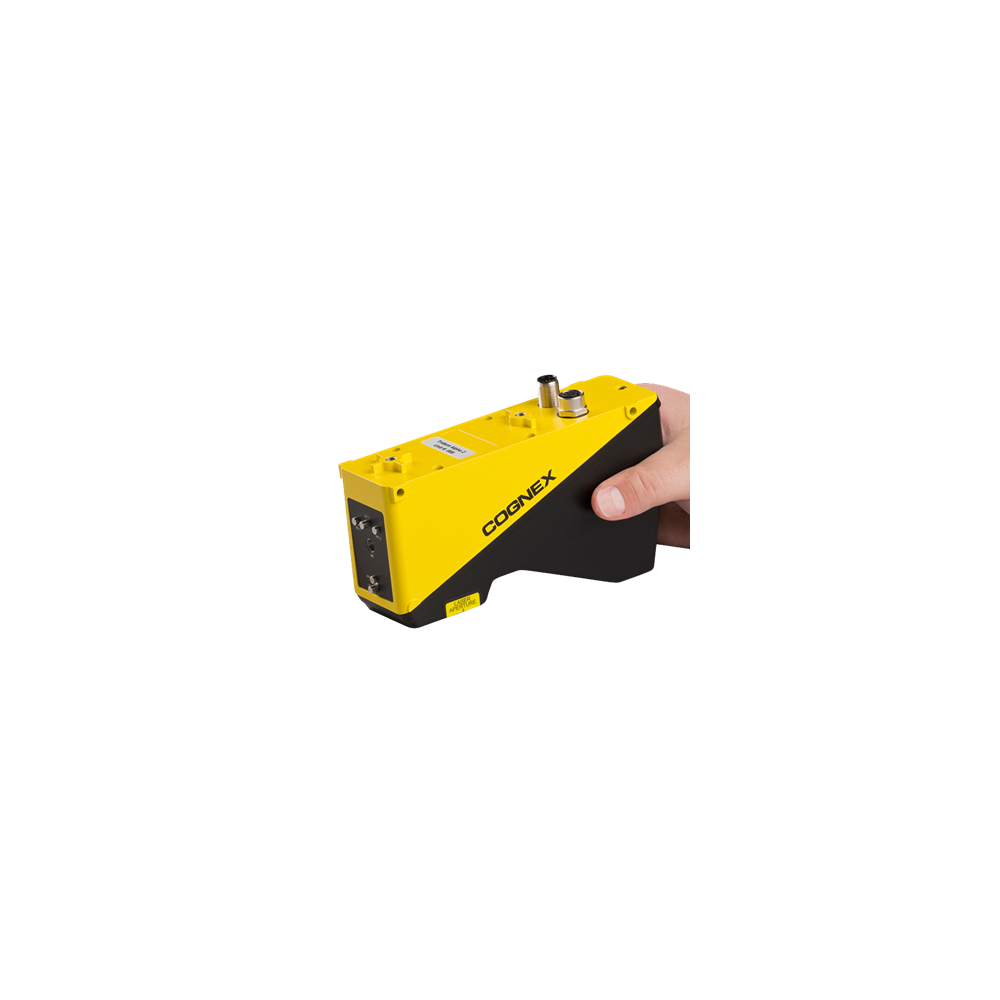

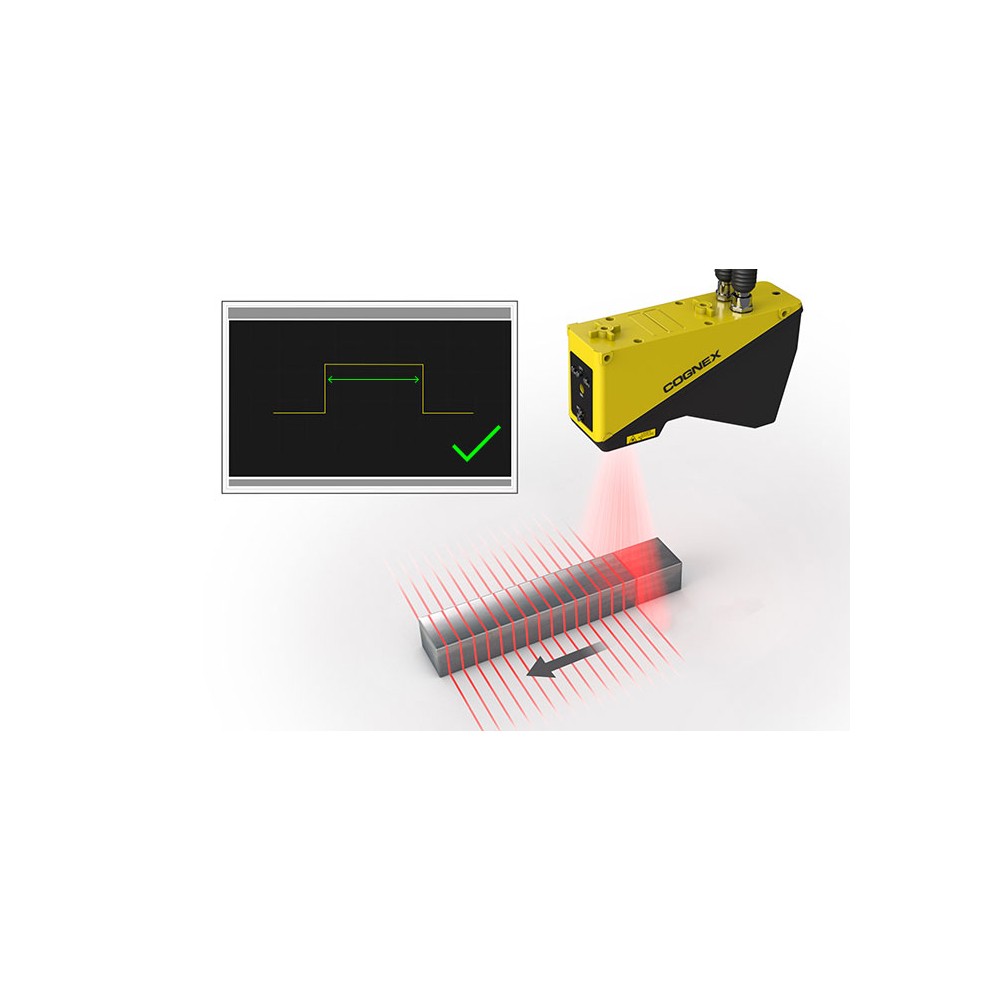

Compact and designed for industrial use, 3D laser displacement sensors realize tridimensional inspection of products. They are equiped with a processing 2D and 3D image software, recognized to be among the best in the market, in their class. Unlike traditional 2D electronic processing, this system provides a topographical representation of the part, based on which you can measure 3D features such as length, width, height, inclination or volume of any surface. Factory pre-calibrated 3D laser displacement sensors delivers results in real measurement units, with a precision of microns.
Specifications:
- Inspect and measure in 3D: volume, height, inclination, OCR
- Results in real units - milimeters
- Calibrated at level of micron
- Realize independent inspection of contrasts: dark object on dark background
- Ability to combine 2D and 3D cameras
- 2D and 3D image processing tools: for measuring height, volume, matching inclination plan
- Protection: IP65
- Fast scanning speeds: 10 kHz
- Operating temperature: from 0 to +50 degrees Celsius
- Storage temperature: from -10 to +60 degrees Celsius
Applications:
In industrial filed, in industries as:
- Automotive

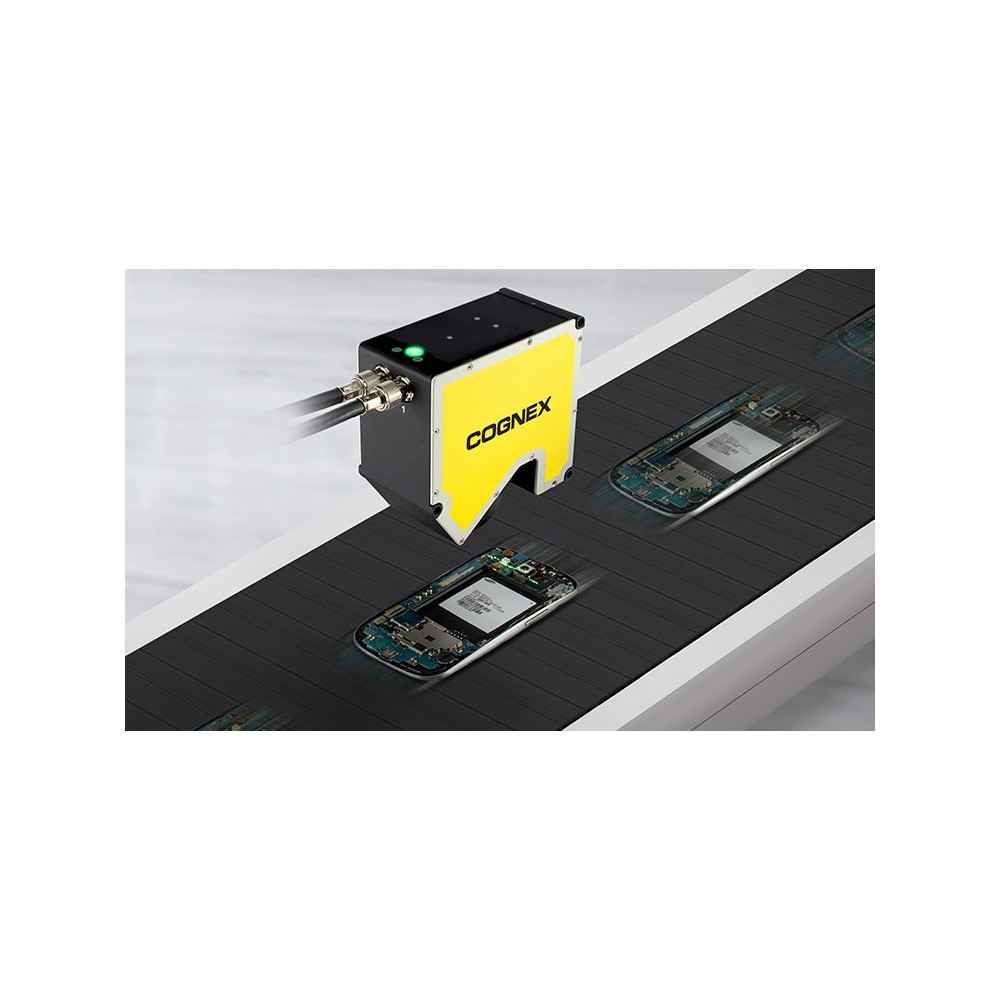

- Electronics
- Pharmaceutical
- Food etc
Strengths:
- High scanning speed
- Robust housing, special for industrial areas
- Improve processing performance
Ask for more details
