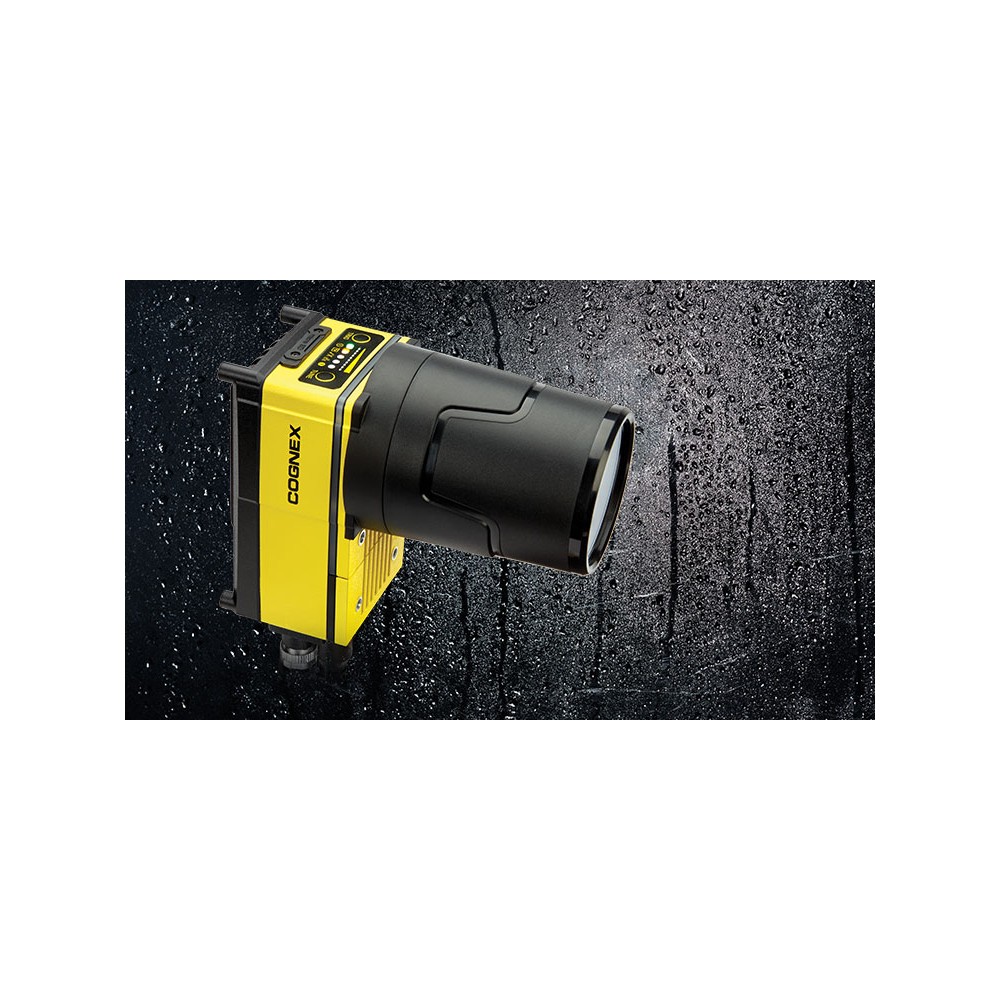

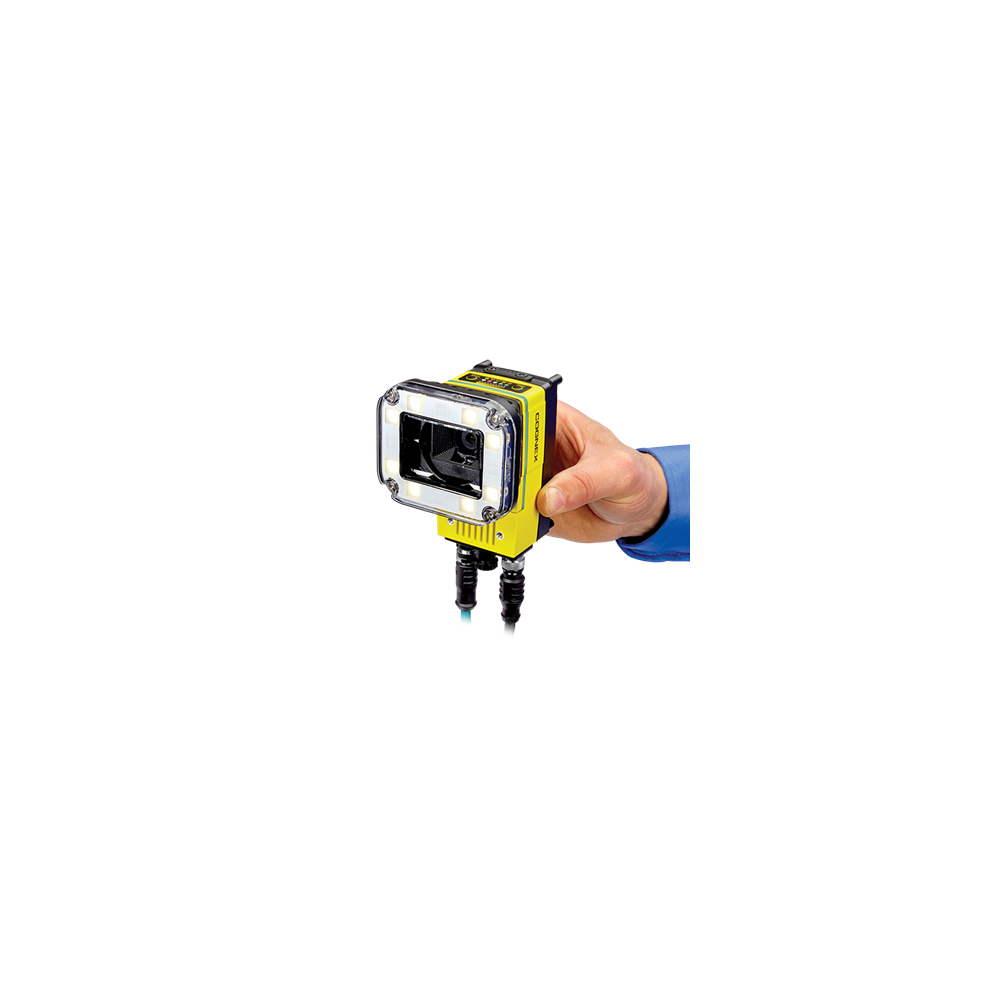

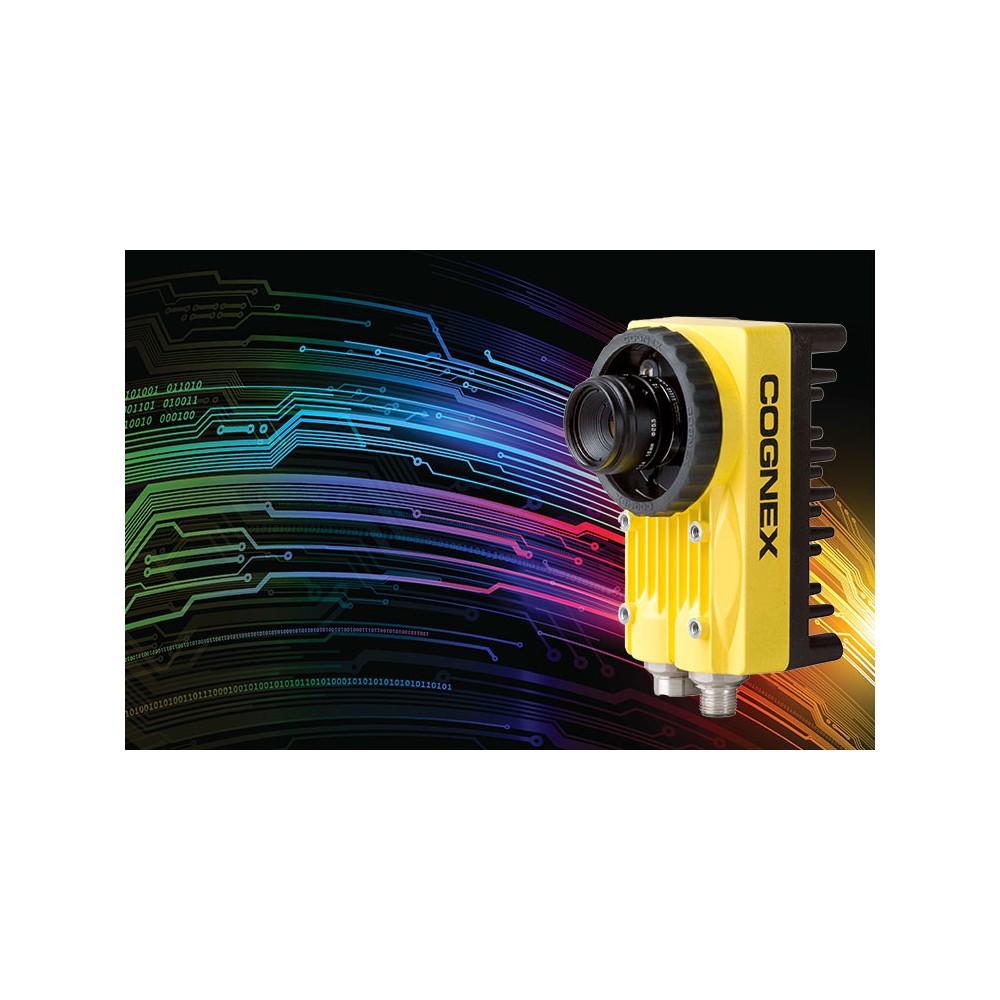

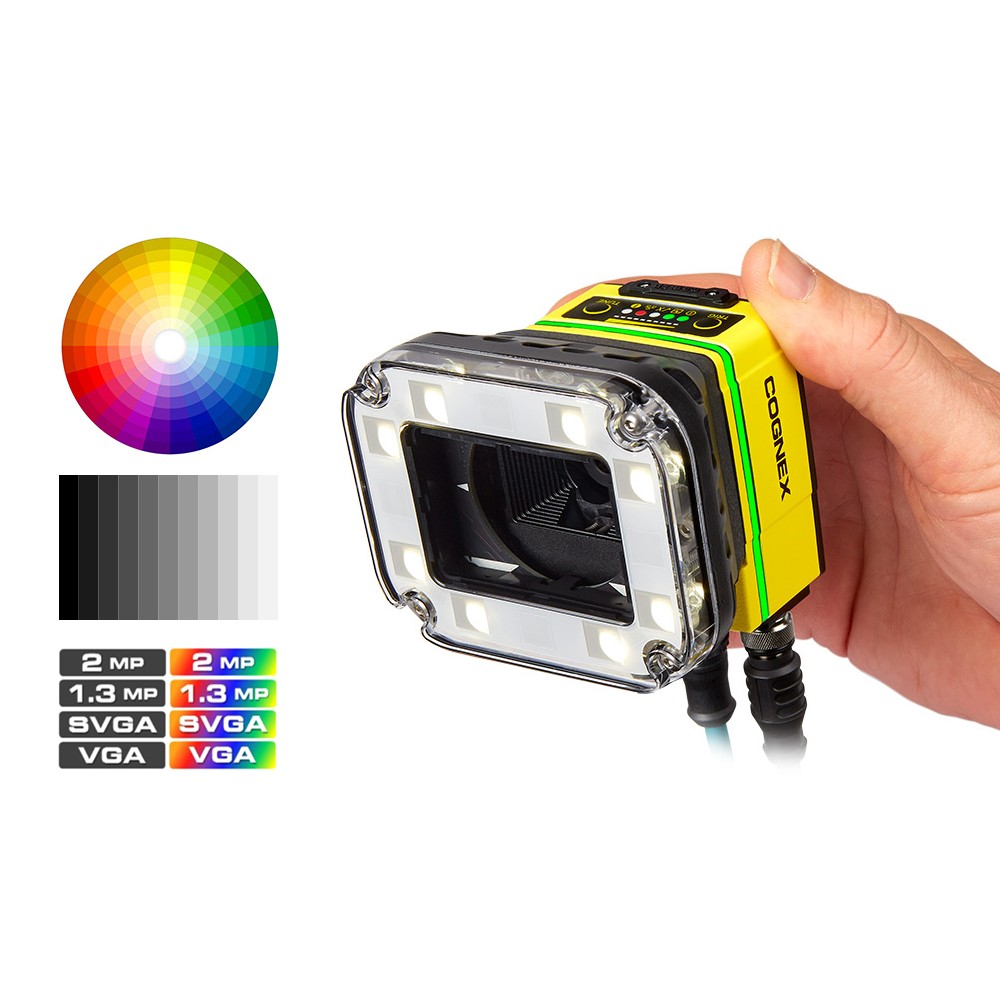

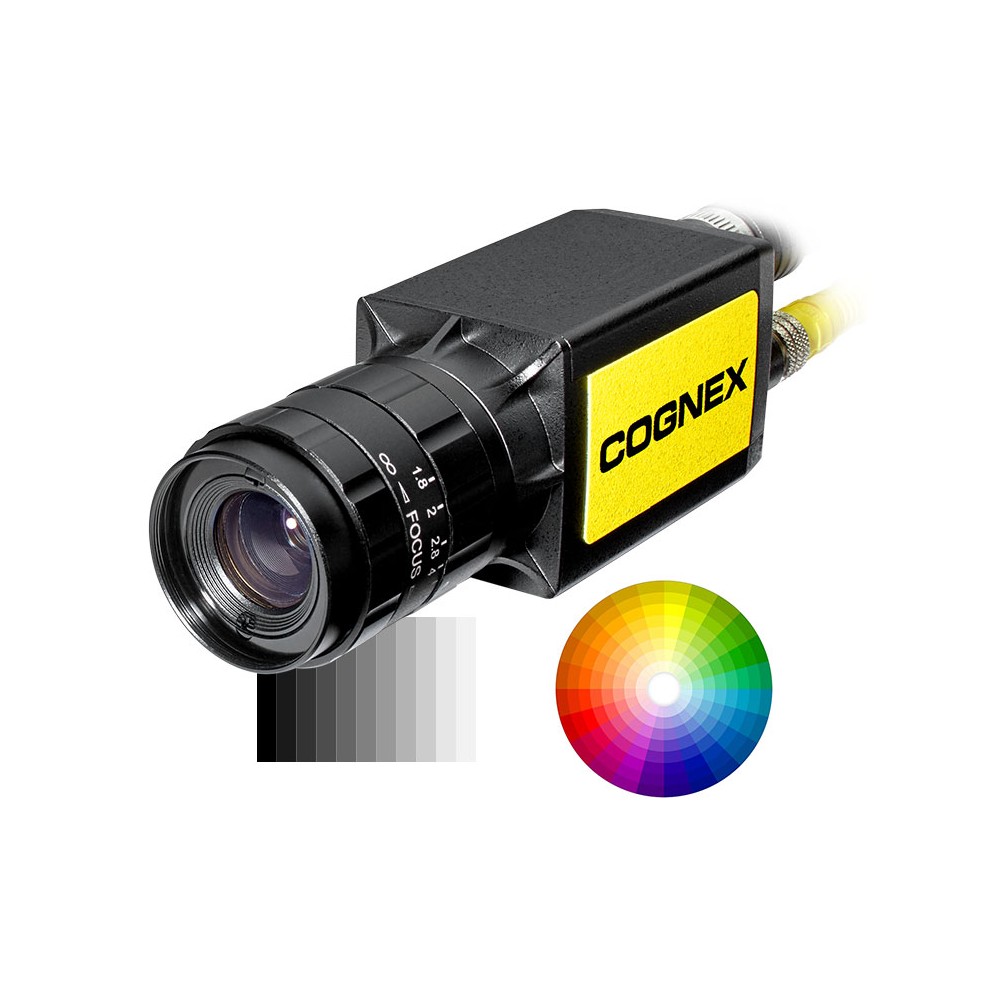

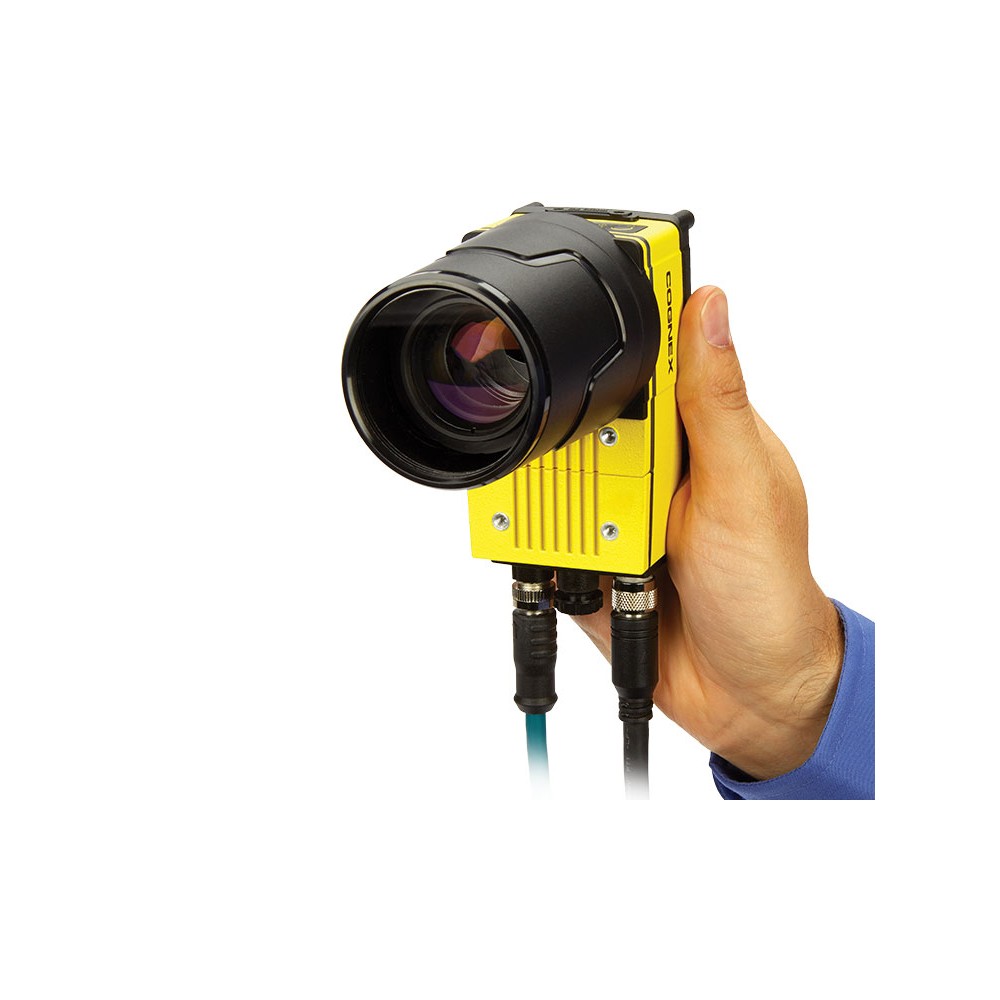

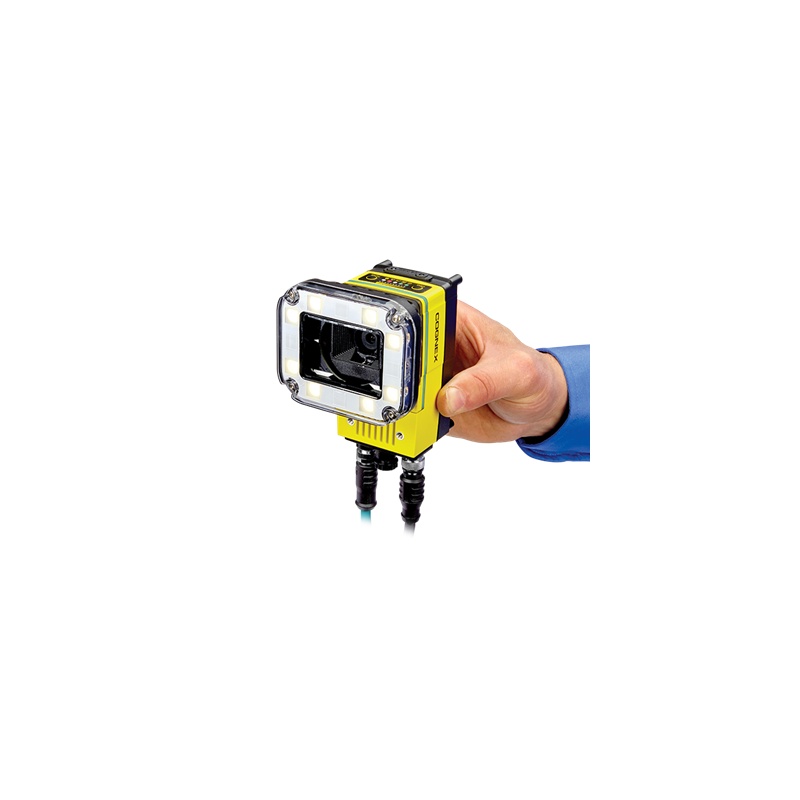

2D Vision Systems

Description:

2D vision systems are excellent in terms of their ability to inspect, identify and guide parts. They are intended to be used in the industrial sector, because they combine a range of advanced image analysis instruments with a feature for fast processing. The wide range of models, which includes linear scanning and detection of color systems meets all the conditions regarding the raport cost/performance.

The automatic optical inspection systems we propose are:

• Cognex In-Sight series D900
• Cognex In-Sight series 9000
• Cognex In-Sight series 8000
• Cognex In-Sight series 7000
• Cognex In-Sight series 5705
• Cognex In-Sight Line Scan

Specifications:

• Equipped both with industrial use instruments, such as PatMaxR, OCRMax, and with instruments that easily detect color, identity, splash of color, edge, calibration and imperfections
• Housings made of cast aluminum and stainless steel
• Programming environment on spreadsheets for advanced users
• Acquisition speed: up to 100 fps
• Optional models with resolution up to 5 megapixels and color, ID, OCR and line scanning
• Multiple options for lens/lighting, including autofocus and integrated lighting
• Visualization and monitoring software, VisionView, and accessories for monitoring and control of the image processing systems directly on the production line
• Tools for optical analysis and control of the image, personalized for integration in HMI systems of others and independent custom applications
• Integrated autofocus
• Integrated lighting
• Protection: IP67
• Wide range: models for color detection, models for linear scan, OCR models, ID models

Applications:

In the industrial field, for:

• Inspection/Identification: with the help of these products you detect assembly errors, defects in the surface, defect parts or the lack of some characteristics. You can identify orientation, shape or position of objects
• Guiding/Alignment: with the help of these products you guide automation equipments and robotic devices or you align parts for high precision assembly operationsand other manufacturing processes
• Calibration/Measuring: with the help of these products you calibrate parts for checking essential dimensions. You can measure components for sorting and grading processes
• OCR/OCV: with the help of these products you read and check alphanumeric characters marked directly on parts or printed on labels
• Presence/Absence: with the help of these products you detect the presence or absence of characteristics and simple objects for elementary results such as acceptance/rejection
• Reading codes: with the help of these products you read 1D and 2D codes, as a step in global inspection
• Inspect large object, car doors that can be registered and inspected, cylindrical parts, car filters and batteries, or labels applied to cylindrical surfaces


Strengths:

• Absolutely independent systems
• Easy to use
• Vast library of tools
• Easy and fast configuration of applications, activity that do not require programming knowledge
• Special accuracy
